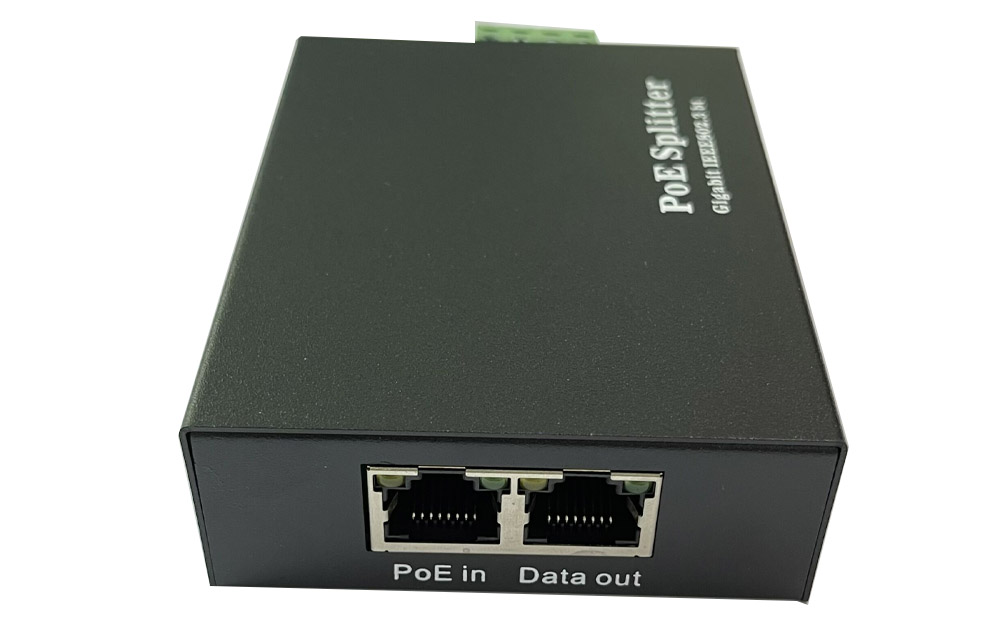

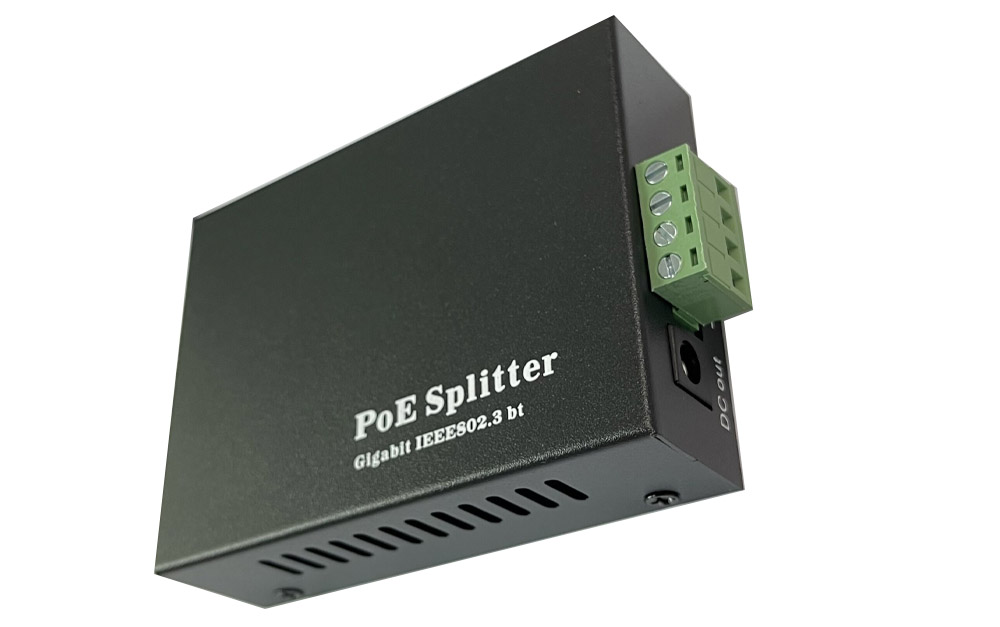

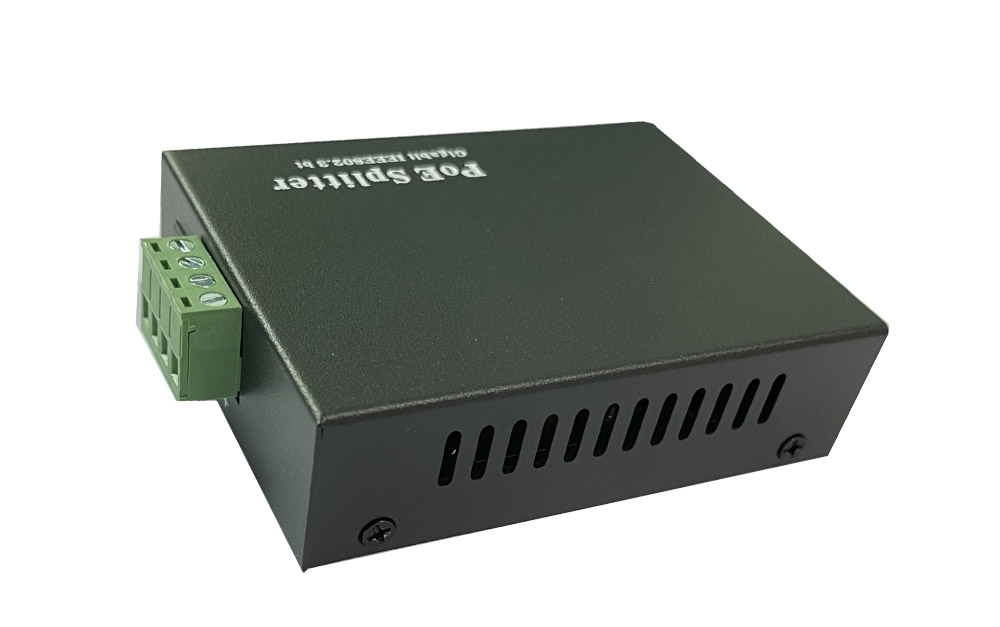

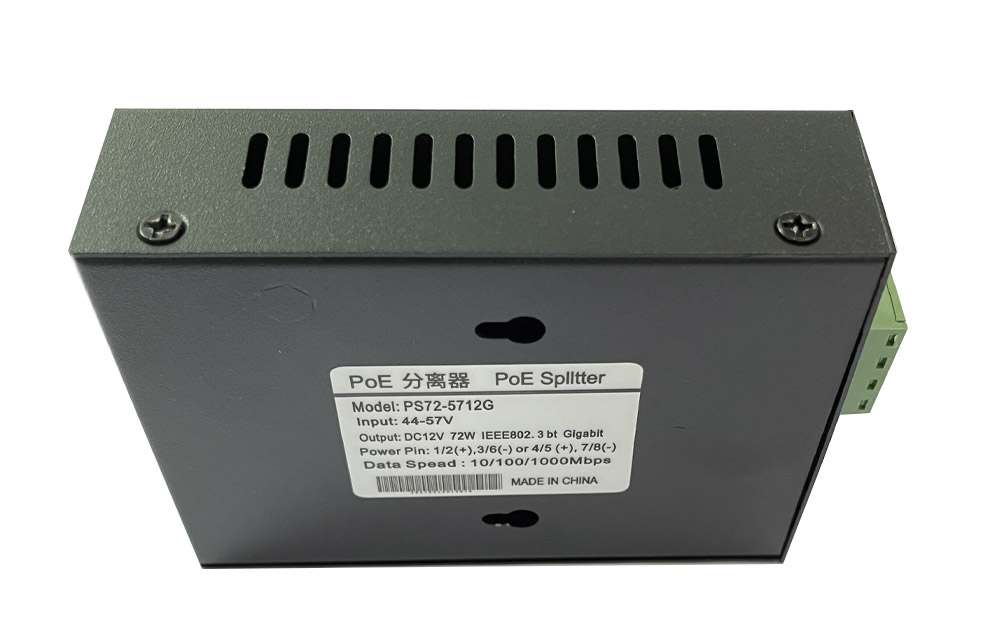

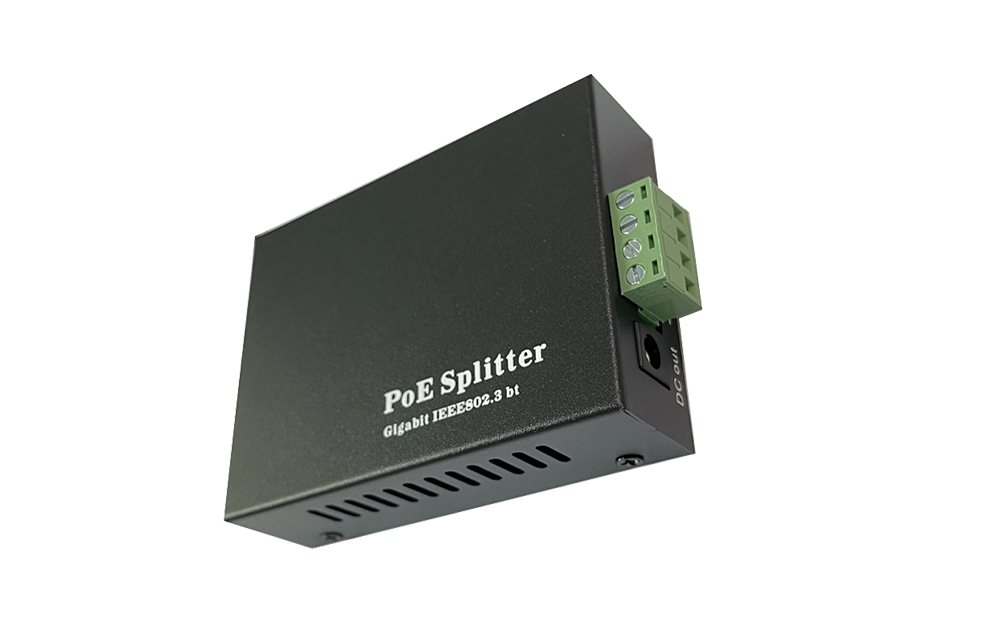

1.Product characteristics

• Compliance with IEEE802.3 bt&at standard.
• 48V~57V wide operating voltage range.
• Maximum output power up to 72W; Rated output: 12V/6A.
• The output ripple is less than 200 mV.
• Conversion efficiency can be as high as 92% (input: 48V output)12V@6A).
• Withovercurrent, short circuit, under voltage, surge andother excellent reliability and circuit protection.
• Crusts standard size: 93mm*70mm*25mm
• Input/Output: isolate 1500Vdc.
• High reliability: The design meets the 5 million hour average failure interval.

2.Scope of application

• Thin client
• POS system
• Digital signage
• Health care
• Lighting

3.Describe

The module is designed to extract power from conventional Class 5 to Class 6 Ethernet cable twisted pairs and meets the IEEE 802.3bt Power-Ethernet (PoE) standard.bt the same time, the module allows the power supply category to select "Intermediate Overlap" and "End Overlap" power supply without distinguishing polarity.

Based on the IEEE 802.3bt standard, this paper establishes information connection about the connection status, device type, power consumption level of the receiving device PD, and then applies power supply to port compatible devices based on PSE to power the PD through ethernet.

This module DC/DC converter works in a wide input voltage range and low ripple low noise output.The DC/DC converter also has built-in output overload, output short circuit and overtemperature protection, and provides a 1500Vdc (input/output) electrical isolation.

4. Mechanical dimensions



Company（mm）
All the above dimensional errors:（±0.3）

6. Electrical characteristics

6.1 Absolute maximum rating parameter

No	Parameter	Symbol	MIN	MAX	Units
1	DC Voltage	VCC	48	57	V
2	DC Voltage Surge 1ms	VSURGE	-0.6	80	V
3	Ambient temperature	TS	-40	80	℃

*Exceeding the above rating may cause permanent damage to the product.Functional operations under these conditions are not recommended.

6.2 Recommended working conditions

6.3 DC Characteristic

No	Parameter	Symbol	MIN	TYP	MAX	Units	Test Opinions
1	Standard Output Voltage	VDC	11.5	12.2	12.2	V	VIN=48V
2	Output Current（VIN=48V）	PWR	—	6	—	A	Wide voltage input 48-57V
3	Power adjustment rate	VLINE	—	0.1	—	%	@50% Load
4	Load Adjustment Rate	VLOAD	—	1	—	%	@VIN=48V
5	Ripple Output Noise	VRN	—	150	200	mVp-p	@Maximum Load
6	Minimum Load	RLOAD	10	—	—	mA
7	Short circuit duration	TSC	—	—	∞	sec
8	Efficiency (load 80%)	EFF	88	93	—	%
9	Isolation Voltage (I/O)	VISO	—	—	1500	VPK
10	Temperature coefficient	Tc	—	0.02	—	%	Per ℃
11	Efficiency	Tr	—	150	250	ms	VIN=48V VOUT=max

1: Typical number is 25 C, nominal voltage is 48V, for auxiliary design only.

2: Output ripple and noise can be reduced by an external filter, see the application instructions.

3: If operated under the specified minimum load, the module emits audible noise and may cause PSE malfunction.

7 Functional Description

7.1 input

PS72-5712G input end with bridge stack ensures input polarity protection, user can choose the connection mode as needed.

7.2 PD Signature

When the module is connected to the cable, it will automatically provide the Power Device (PD) signature to the PSE when needed.The PSE recognizes that the PD is connected to that line and provides power

7.3 Power Classification

PS72-5712G uses IEEE802.3bt standard and runs with Class 8 (71W) power rating by default.

Define criteria	Cable requirements	Grading parameters	Power Supply Characteristics
IEEE802.3at（PoE Plus）	CAT5 cable or CAT6 cable	Maximum power required for Class4 devices is 13W~25.5W	The DC voltage ranges from 42 to 57V, with a typical value of 48V. Typical operating current is 10~600mA; typical output power: 30W; Class4 rating supported by electrical equipment
IEEE802.3af（PoE++）	CAT6 cable	Maximum power required for Class5 devices is 40W	The DC voltage ranges from 48 to 57V, with a typical value of 52V. Typical operating current is 10~1300mA; typical output power: 62W;

8. PoE Product naming rules

9. Typical applications

This module is used in PSE network cable to convert electric energy to DC-DC to the required voltage of equipment without affecting data signal transmission. It conforms to ieee802.3bt standard and is used by all equipment terminals

10. Test waveform diagram

Typical features：Vout=12

Efficiency (Vout = 12 V)	Output voltage (input 48V)
Maximum temperature of components Conditions (ambient temperature: 25℃; Output power: 12V / 6A; frequency: 3H)	Input voltage & output voltage

Noise (VIN = 48V, IO = 6A, 5 ~ 20MHz bandwidth)

Power supply agreement

Power Up

PWM waverform

Power Down

Switch Waveform
