1.Product characteristics

• Compliance with IEEE802.3af/at standard.
• 40V~57V wide operating voltage range.
• Maximum output power up to 15W; Rated output: 5V/3A.
• The output ripple is less than 260 mV.
• Conversion efficiency can be as high as 87% (input: 48V output)5V@3A).
• With over current short circuit under voltage surge and other excellent reliability and circuit protection.

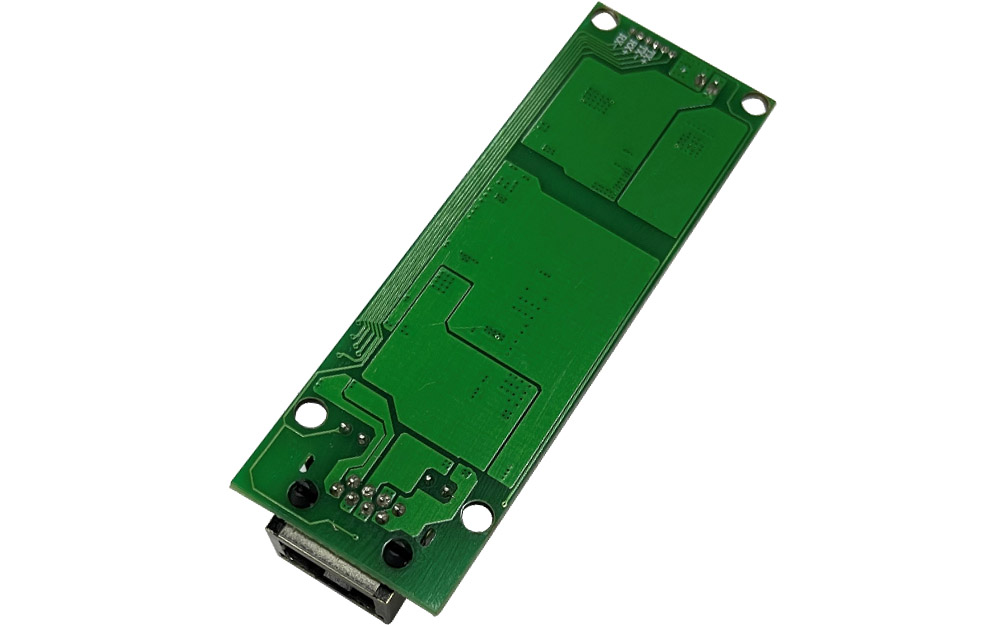

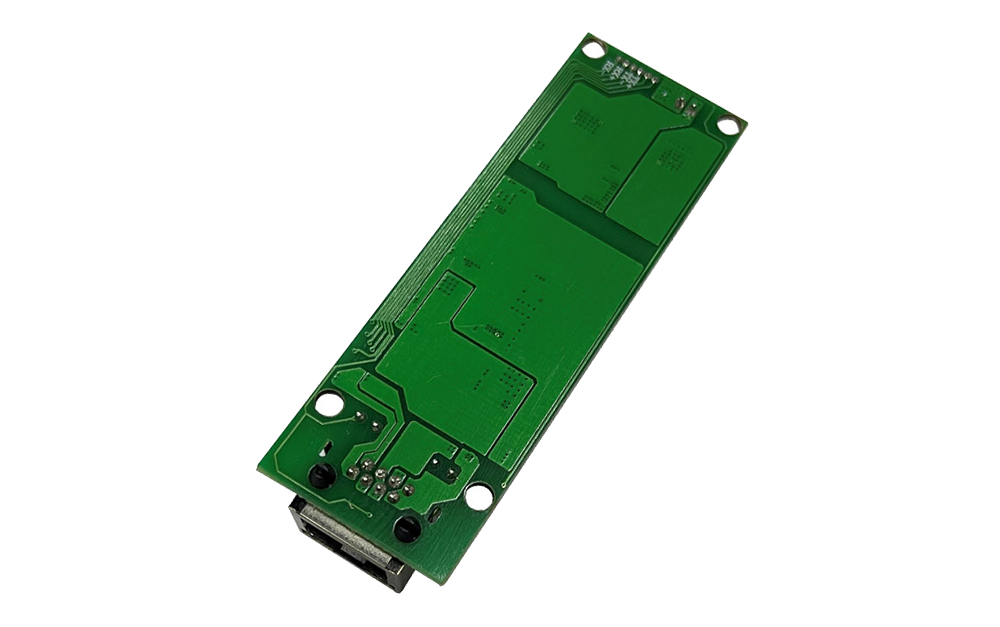

• PCBA standard size: 82mm*28mm*14mm
• High reliability: The design meets the 5 million hour average failure interval.

2.Scope of application

• Video and VoIP Phone
• RFID Reader
• Multiband Access Point
• Surveillance camera

3.Describe

The module is designed to extract power from conventional Class 5 Ethernet cable twisted pairs and meets the IEEE 802.3af/at Power-Ethernet (PoE) standard.At the same time, the module allows the power supply category to select "Intermediate Overlap" and "End Overlap" power supply without distinguishing polarity.

Based on the IEEE 802.3af/at standard, this paper establishes information connection about the connection status, device type, power consumption level of the receiving device PD, and then applies power supply to port compatible devices based on PSE to power the PD through ethernet.

This module DC/DC converter works in a wide input voltage range and low ripple low noise output.The DC/DC converter also has built-in output overload, output short circuit and overtemperature protection, and provides a 1500Vdc (input/output) electrical isolation.

4. Mechanical dimensions

Company（mm）
All the above dimensional errors:（±0.3）

5.Pin definition

Pin	Name	Describe
1	Vout-	The negative output of the PD
2	Vout+	The positive output of the PD
3	TX+	TX_D1+ Tranceive Data+ （send data+）
4	TX-	TX_D1- Tranceive Data- （send data-）
5	RX+	RX_D2+ Receive Data+ （receive data+）
6	RX-	RX_D2- Receive Data- （receive data-）
